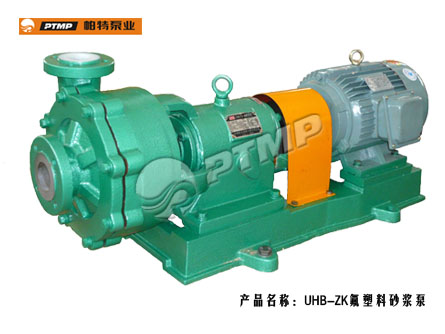

UHB - ZK series fluorin plastic mortar pump



 product class:Chemical pump series
 product name:UHB - ZK series fluorin plasti....



Performance

 data

 Range of capacity      1.8~1450m³/h
Range of head  ≤133m
Medium temperature  -10℃~120℃
Ambient temperature   Up to 40℃
Maximum working pressure suction pressure+head of pump≤1.6MPa
Motor data

Supporting power



Voltage  380V
Frequency  50HZ
Rotating speed  2900r/min,1450r/min,970r/min
Protection class  IP44/IP54
Insulation class  B/F
Material pump body , pump cover,impeller  cast iron
Pump shaft  45 steel /stainless stell 3Crl3
Mechanical seal  silicon carbide,graphite,tungsten carbide,hard alloy and etc.
  • overview
  • feature
  • purpose
  • Model significance
  • Show case
  • data behavioral
  • Application area

    This pump is a single-stage&single-suction cantilever centrifugal pump, with structure of steel and UHMW-PE lining. It owns strength of steel, and excellent corrosion proof performance and superior abrasion proof performance of UHMW-PE.

   This product is applicable for: liquids such as acids and alkalis, organic solvents of salt and oil foods, beverages and alcohols, especially applicable for feeding highly corrosive liquids with fine particles.
     perating temperature:-20℃~80℃
